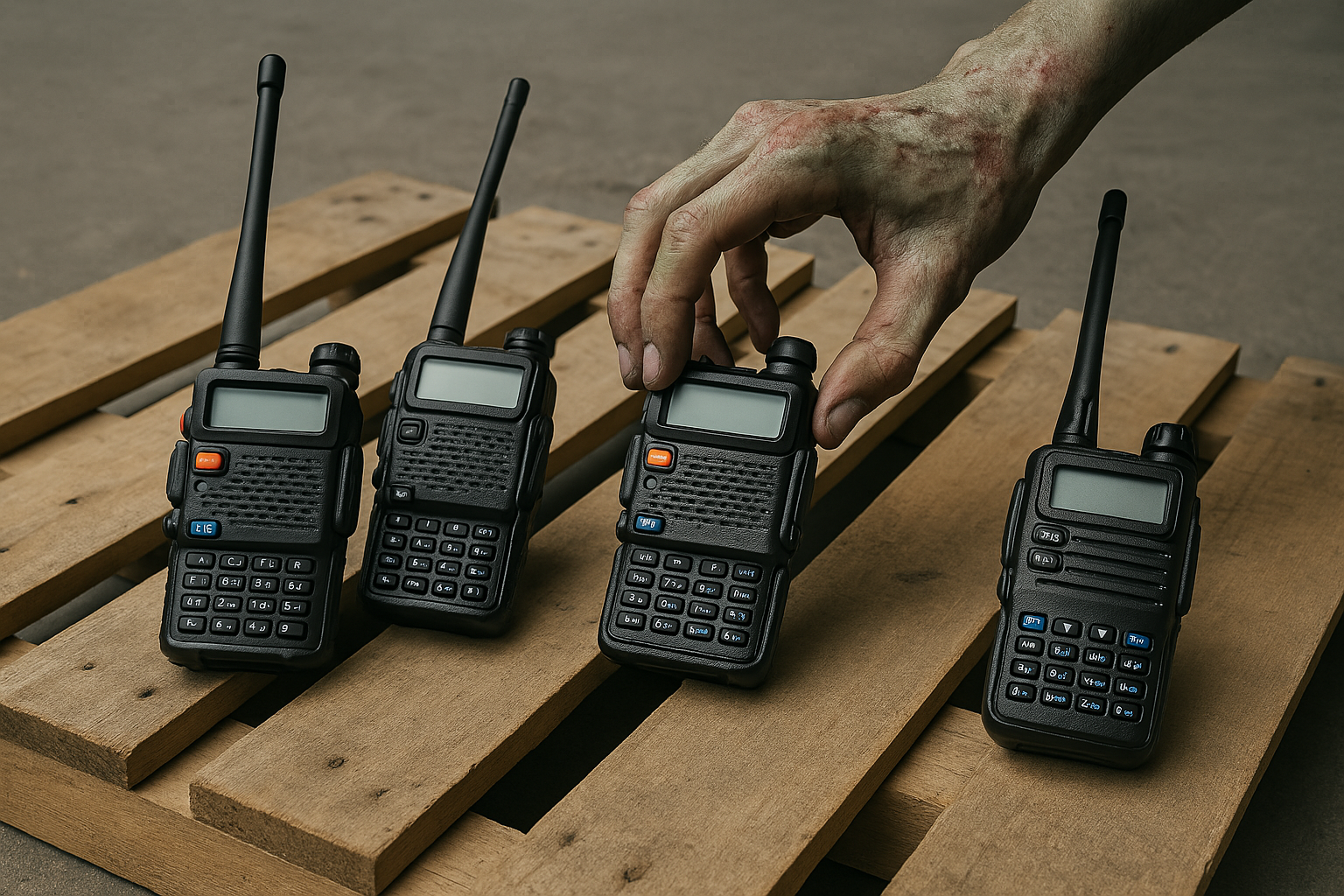

Zombie 4 Radios

Hand Held Radio Primer

"I say again, repeat your last?"

Hand held radios come in a variety of standards. The standards vary between countries. In the United States, we have band plans defined by the FCC. Some of these plans require special equipment and some require specific licenses.

Considerations

  • If you don't want to buy a license then buy FRS, MURS, or CB radio equipment.
  • If you don't want to take a test then buy GMRS and purchase a whole family license for $35.
  • If you want the achievement of being a ham radio operator and having access to more of the radio spectrum then use Ham Radio Prep and get your amateur radio license.
  • If you want to use commercial reserved services like Land Mobile Radio Service then buy that equipment.

Hand Held Band Plans

  • FRS - Family Radio Service
  • GMRS - General Mobile Radio Service
  • MURS - Multi-Use Radio Service
  • HAM - Amateur Radio Service
  • LMRS - Land Mobile Radio Service
  • Marine VHF Radio Service
  • Extended Mid UHF (350TX)
  • T-Band / Public Safety (500TX)

The Family Radio Service (FRS) is a license-free personal radio service in the United States, designed for short-range two-way communication between individuals, families, or small groups—typically for recreational, personal, or neighborhood use.

  • Regulated by: FCC Part 95 Subpart B
  • License: No License Required
  • Users: General public (open to anyone in the U.S.)
  • Frequency Range: 462 MHz and 467 MHz (UHF)

  • Power: 2 watts ERP
  • No detachable antennas Must have a fixed, non-removable antenna
  • No repeaters allowed FRS devices can't use or access repeaters
  • Analog voice only No digital voice, data, or encryption is permitted
  • Must be FCC-certified Radios must be Part 95B compliant and labeled
  • Maximum range is typically 0.5 to 2 miles, depending on terrain and obstructions

The General Mobile Radio Service (GMRS) is a licensed radio service in the United States that allows for higher-powered communication over UHF frequencies. It is commonly used by families, outdoor groups, off-roaders, and businesses for reliable local communication.

  • Regulated by: FCC Part 95 Subpart E
  • License: Required (One license covers an entire family)
  • Users: Licensed individuals and their immediate family members
  • Frequency Range: 462 MHz and 467 MHz (UHF)

  • Power: Up to 50 watts ERP (depending on channel)
  • Repeater use allowed (on designated GMRS repeater input/output pairs)
  • Detachable antennas permitted on mobile and base stations
  • Compatible with FRS on shared channels (1-7 and 15-22)
  • License term: 10 years
  • Typical range: 1-5 miles handheld, 10+ miles with repeater or base setup

The Multi-Use Radio Service (MURS) is a license-free VHF radio service in the U.S., offering five channels for personal or business use with very few restrictions. MURS is ideal for property management, retail stores, farms, and personal communication.

  • Regulated by: FCC Part 95 Subpart J
  • License: No License Required
  • Users: General public and businesses (open to all in the U.S.)
  • Frequency Range: 151.820-154.600 MHz (VHF)

  • Power: 2 watts max output
  • Antennas: External antennas allowed (with height restrictions)
  • No repeaters allowed MURS is simplex-only
  • Modulation: Voice or data allowed (e.g., telemetry or alarms)
  • Channels: 5 pre-set frequencies
  • Typical range: 1-3 miles, more in open rural environments

The Amateur Radio Service—commonly called Ham Radio—is a licensed radio service for hobbyists, emergency responders, and technical enthusiasts. It allows operation across a wide range of frequencies and modes for communication, experimentation, and public service.

  • Regulated by: FCC Part 97
  • License: Required (Technician, General, or Extra class)
  • Users: Licensed individuals (not for commercial use)
  • Frequency Range: Multiple bands across HF, VHF, UHF (e.g., 144-148 MHz, 420-450 MHz, 222-225 MHz)

  • Power: Up to 1500 watts (depending on license and band)
  • Antennas: External antennas fully allowed (no height restrictions unless near airports)
  • Repeaters: Fully allowed; many local and linked repeater systems
  • Modulation: Voice (FM/SSB/AM), data (digital modes), video (ATV), Morse code (CW), and more
  • Call sign required: Operators must identify with their FCC-issued call sign
  • Typical range: Local to global, depending on frequency and propagation

The Business or Industrial/Business Pool of the Land Mobile Radio Service (LMR) is a licensed radio service used by organizations for internal communications. It's common in manufacturing, transportation, property management, security, and event coordination.

  • Regulated by: FCC Part 90
  • License: Required (Per organization or entity)
  • Users: Commercial, industrial, and government organizations
  • Frequency Range: 150-174 MHz (VHF) and 450-470 MHz (UHF)

  • Power: Typically 4-50 watts depending on equipment and license
  • Antennas: External and high-gain antennas allowed
  • Repeaters: Allowed to extend coverage
  • Modulation: Voice and data (digital or analog)
  • Coordination required: Frequency coordination by certified coordinators
  • Typical range: 2-20 miles depending on setup and environment

The Marine VHF Radio Service is a licensed radio service used for ship-to-ship and ship-to-shore communication in U.S. and international waters. It is vital for navigation safety, hailing, distress alerts, weather information, and coordination with the Coast Guard, harbormasters, and marinas.

  • Regulated by: FCC Part 80
  • License: Required for international use; not required for U.S. recreational vessels operating domestically
  • Users: Commercial and recreational boaters, Coast Guard, harbor authorities
  • Frequency Range: 156.000-162.025 MHz (VHF)

  • Power: 1 to 25 watts depending on channel and use
  • Antennas: External marine-grade antennas required (often mast-mounted)
  • Repeaters: Marine repeaters are uncommon but exist for port operations (duplex channels)
  • Modulation: Analog voice and Digital Selective Calling (DSC) on Channel 70
  • Channel usage: Channel 16 for distress and hailing; Channel 13 for bridge-to-bridge; Channel 22A for USCG contact
  • Typical range: 5-25 nautical miles, depending on antenna height and conditions

The 350-400 MHz range is not officially designated as a general-use radio service in the U.S., but some commercial or government users may operate under special licensing or allocations. Some imported radios offer a 350TX mode to transmit in this range, though it is typically unauthorized for public use.

  • Regulated by: FCC Part 90 / Federal allocations
  • License: Required (with specific FCC authorization)
  • Users: Federal agencies, some commercial systems
  • Frequency Range: 350-400 MHz (UHF)

  • Power: Varies by service; typically 5-25 watts
  • Antennas: External antennas permitted
  • Repeaters: May be allowed if authorized
  • Modulation: Voice or data (analog or digital)
  • Important: Not legal for general public or ham operators
  • Typical range: 1-10 miles, depending on environment

The T-Band is a section of UHF radio spectrum from 470-512 MHz used primarily by public safety and emergency services in select urban areas. Radios with a 500TX feature can transmit in this range, but only authorized entities may legally operate there.

  • Regulated by: FCC Part 90
  • License: Required (Only for public safety or eligible business entities)
  • Users: Police, fire, EMS, municipal and transit authorities
  • Frequency Range: 470-512 MHz (UHF)

  • Power: Typically 5-100 watts depending on use case
  • Antennas: External antennas fully supported
  • Repeaters: Widely used for city-wide coverage
  • Channels: Derived from 6 MHz TV channel blocks (TV 14-20)
  • Restricted: Use is limited to 11 major metro areas
  • Typical range: 2-20+ miles with repeater infrastructure

FCC Fines

The vast majority of FCC fines related to radio are related to pirate radio stations. Two ham radio related FCC fines are Ham Operator blocking Repeater for $17,000 and Ham Operator on prohibited frequency interfering with Emergency Services $34,000. Each case involved multiple requests to stop before it rose to the level of a fine. You can double check me by reviewing the FCC Enforcement Actions.

Check out this analysis by a popular radio influencer.

Hand Held Radios are basically line of sight radios; so, terrain, obstacles, and the curvature of the earth interfere with the signal. These devices (without a repeater) are limited to a few miles range. This means that if you used your ham radio on FRS, GMRS, and MURS frequencies that someone would need to be close enough to detect your usage and report it to the FCC. I don't believe the FCC is out fining people for using small wattage hand helds on the wrong band plan.

There are no FCC enforcements that I could find where a person was fined for using their HAM radio on FRS, GMRS, and MURS frequencies.

And if you are smart, reduce your wattage to the minimum required to communicate with the other members of your group then the signal detection risk is FREAKISHLY LOW. The majority of FCC radio actions are related to blocking other people from using a frequency or illegally broadcasting like a FM radio station.

If you were caught using a Baofeng to consistently talk to a MURS operator, they would most likely tell you to buy a MURS radio. If you are using a Baofeng on a boat in place of a damaged Marine VHF radio that would be a FCC part certification issue with the device; most likely treated like jay walking. If you were using the Marine VHF radio frequencies on land without a registered boat and interferring with water operations, you can expect to be reported and fined.

If you interfere with commerical licensed frequencies (350TX) connected to multi-million dollar operations like cranes and construction sites, you can expect their baby eating lawyers to come after you. Salaried lawyers like to drop the hammer. Don't be the nail. Don't use their frequencies. Same for T-Band. Messing with public safety and emergency services is asking for FCC to crush you.

It is cheaper to buy radios then to pay fines.

Transmit Capabilities of Some Common Radios

The transmit capabilities of a few commonly purchased radios are below. All the radios have abilities that are illegal; meaning, that you could use the device in a way that violates FCC regulations. The following tables are meant to help you understand what is legal and what is illegal.

I am not a lawyer; my research could be wrong. Verify for yourself.

The biggest issue is interoperasbility. You might need multiple licenses and multiple radios.

The table rows are color coded. The legend is below.

Baofeng UV-5R On Amazon

Band Plan Name TX Frequency Range (MHz) High Mid Low Notes
Ham (VHF 2m) 144-148 6.6W 4.28W 1.52W Part 97 (license required)
Ham (UHF 70cm) 420-450 18.6W 14.42W 5.41W Part 97 (license required)
Out-of-Band / GMRS / FRS 462-467 7.37W 7.41W 3.62W Not Part 95 certified
MURS 151.820-154.600 7.52W 4.91W 1.76W Not certified for MURS; power exceeds limits
Marine VHF 156.000-162.025 8.0W 5.4W 1.98W Not Certified; Must be boating.
Business / LMR (Part 90) 150-174 / 450-470 7.21W 4.8W 1.30W Requires coordination and license
T-Band / Public Safety 470-512 6.82W 7.21W 3.93W Not certified; restricted to public safety use

Baofeng UV-5RM On Amazon

Band Plan Name TX Frequency Range (MHz) High Mid Low Notes
Ham (VHF 2m) 144-148 10.43W 8.84W 4.64W Part 97 (license required)
Ham (UHF 70cm) 420-450 26.54W 14.40W 8.36W Part 97 (license required)
Out-of-Band / GMRS / FRS 462-467 10.37W 5.09W 2.42W Not Part 95 certified
MURS 151.820-154.600 10.32W 8.14W 4.07W Not certified for MURS; power exceeds limits
Marine VHF 156.000-162.025 10.94W 8.57W 4.64W Not Certified; Must be boating.
Business / LMR (Part 90) 150-174 / 450-470 10.06W 4.69W 2.05W Requires coordination and license
T-Band / Public Safety 470-512 11.19W 5.47W 2.66W Not certified; restricted to public safety use

TIDRADIO TD-H3 On Amazon

Band Plan Name TX Frequency Range (MHz) High Low Notes
Ham (VHF 2m) 144-148 5.57W 1.62W Part 97 (license required)
Ham (UHF 70cm) 420-450 14.65W 4.68W Part 97 (license required)
Ham (1.25m / 220 Band) 222-225 2.19W 2.12W Part 97 (license required)
GMRS 462-467 6.37W 2.14W Not Part 95 certified; requires GMRS license
MURS 151.820-154.600 5.53W 1.86W Not certified for MURS; may exceed power limits
Marine VHF 156.000-162.025 5.06W 2.31W Not Certified; Must be boating.
Business / LMR (Part 90) 150-174 / 450-470 5.11W 2.58W With 200TX enabled
Extended Mid UHF (350TX) 350-400 27.10 26.84 Not certified; used in some commercial systems
T-Band / Public Safety (500TX) 470-512 3.64W 2.66W Restricted to authorized public safety only

TIDRADIO TD-H8 GMRS On Amazon

Band Plan Name TX Frequency Range (MHz) High Mid Low Notes
Ham (VHF 2m) 144-148 5.41W 5.40W 2.06W Part 97 (license required)
Ham (UHF 70cm) 420-450 10.32W 10.53W 0.474W Part 97 (license required)
GMRS 462-467 9.77W 9.64W 2.54W Part 95E Certified for GMRS
MURS 151.820-154.600 5.82W 5.80W 2.55W Not certified for MURS; power exceeds limits
Marine VHF 156.000-162.025 6.33W 6.23W 2.25W Not Certified; Must be boating.
Business / LMR (Part 90) 150-174 / 450-470 7.75W 7.66W 2.74W Requires coordination and license
T-Band / Public Safety 470-512 9.46W 9.46W 1.78W Not certified; restricted to public safety use

Reference

FRS, GMRS, MURS, and Marine VHF Channels

These bands require channelized hardware built for the band. Non-channelized devices may be able to transmit on these frequencies without the proper FCC Part Compliance; but, it would be illegal.

Band Plan Band Wavelength Channel Number Frequency (MHz) Description
FRS UHF 70cm 1 462.5625 Shared with GMRS, 2W max
FRS UHF 70cm 2 462.5875 Shared with GMRS, 2W max
FRS UHF 70cm 3 462.6125 Shared with GMRS, 2W max
FRS UHF 70cm 4 462.6375 Shared with GMRS, 2W max
FRS UHF 70cm 5 462.6625 Shared with GMRS, 2W max
FRS UHF 70cm 6 462.6875 Shared with GMRS, 2W max
FRS UHF 70cm 7 462.7125 Shared with GMRS, 2W max
FRS UHF 70cm 8 467.5625 FRS-only, 0.5W max
FRS UHF 70cm 9 467.5875 FRS-only, 0.5W max
FRS UHF 70cm 10 467.6125 FRS-only, 0.5W max
FRS UHF 70cm 11 467.6375 FRS-only, 0.5W max
FRS UHF 70cm 12 467.6625 FRS-only, 0.5W max
FRS UHF 70cm 13 467.6875 FRS-only, 0.5W max
FRS UHF 70cm 14 467.7125 FRS-only, 0.5W max
FRS UHF 70cm 15 462.5500 Shared with GMRS, 2W max
FRS UHF 70cm 16 462.5750 Shared with GMRS, 2W max
FRS UHF 70cm 17 462.6000 Shared with GMRS, 2W max
FRS UHF 70cm 18 462.6250 Shared with GMRS, 2W max
FRS UHF 70cm 19 462.6500 Shared with GMRS, 2W max
FRS UHF 70cm 20 462.6750 Shared with GMRS, 2W max
FRS UHF 70cm 21 462.7000 Shared with GMRS, 2W max
FRS UHF 70cm 22 462.7250 Shared with GMRS, 2W max
Band Plan Band Wavelength Channel Number Frequency (MHz) Description
GMRS UHF 70cm 15 467.5500 Repeater input for GMRS Channel 15
GMRS UHF 70cm 16 467.5750 Repeater input for GMRS Channel 16
GMRS UHF 70cm 17 467.6000 Repeater input for GMRS Channel 17
GMRS UHF 70cm 18 467.6250 Repeater input for GMRS Channel 18
GMRS UHF 70cm 19 467.6500 Repeater input for GMRS Channel 19
GMRS UHF 70cm 20 467.6750 Repeater input for GMRS Channel 20
GMRS UHF 70cm 21 467.7000 Repeater input for GMRS Channel 21
GMRS UHF 70cm 22 467.7250 Repeater input for GMRS Channel 22
Band Plan Band Wavelength Channel Number Frequency (MHz) Description
MURS VHF 2m 1 151.820 Voice/data, personal or business
MURS VHF 2m 2 151.880 Voice/data, personal or business
MURS VHF 2m 3 151.940 Voice/data, personal or business
MURS VHF 2m 4 154.570 Former business use, now MURS
MURS VHF 2m 5 154.600 Former business use, now MURS
Band Plan Band Wavelength Channel Number Frequency (MHz) Description
Marine VHF VHF 2m 06 156.300 Intership safety
Marine VHF VHF 2m 09 156.450 Non-commercial communications
Marine VHF VHF 2m 13 156.650 Bridge-to-bridge nav (1W max)
Marine VHF VHF 2m 16 156.800 Distress & hailing (Coast Guard monitored)
Marine VHF VHF 2m 22A 157.100 USCG liaison channel
Marine VHF VHF 2m 68 156.425 Recreational communication
Marine VHF VHF 2m 70 156.525 DSC (Digital Selective Calling)
Marine VHF VHF 2m 72 156.625 Non-commercial, boat-to-boat
Marine VHF VHF 2m 73 156.675 Non-commercial communication
